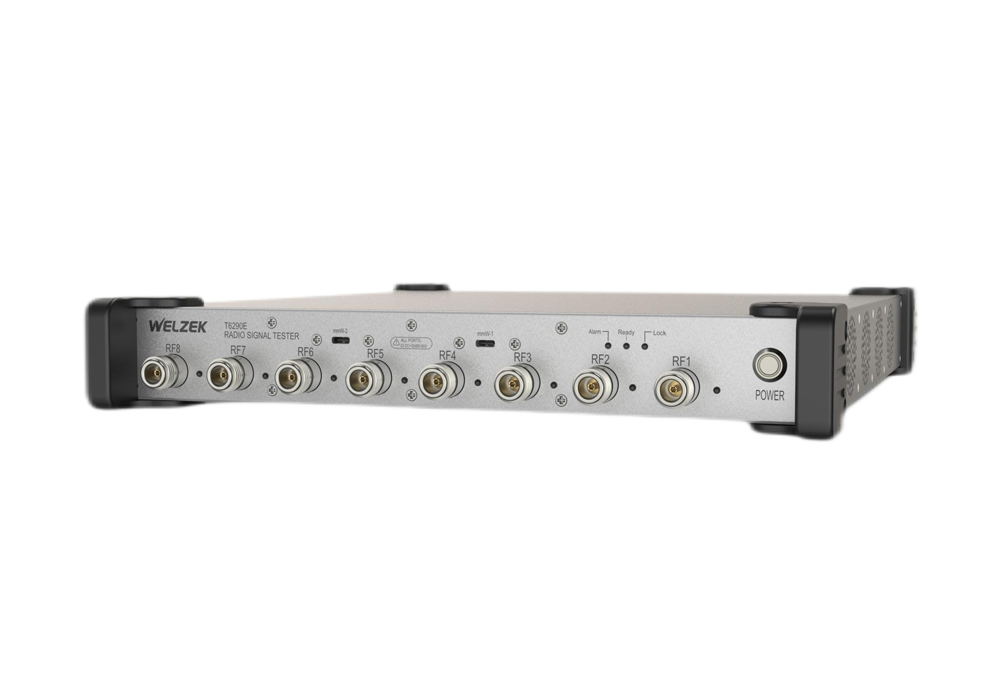

产线专用T6290E_产品中心_深圳市欧瑞杰智能科技有限公司

产品参数

测试频率

频率范围

400MHz-8000MHz

24GHz至44GHz

频率设置分辨率

1Hz

频率精度

与时间基准精度相同

信号发生器功能参数

最大发射信号带宽

500MHz,中心频率从600MHz至8000MHz

输出功率精度

400MHz至4000MHz:+0.6dB,输出功率等级>-80dBm

4000MHz至 8000MHz:±1.0dB,输出功率等级>-80dBm

载波偏移1MHz单边带 <-125dBC/Hz,CW输出-15dBm,400MHz至8000MHz

载波偏移100KHz单边带 <-95dBC/Hz,CW输出-15dBm,400MHz至8000MHz

信号分析器功能参数

最大分析信号带宽

400MHz,中心频率从600MHz至8000MHz

输入信号测量精度

400MHz至6000MHz:+0.6dB,输出功率等级>-50dBm

6000MHz至8000MHz:±1.0dB,输出功率等级>-50dBm

输出信号相位噪声

载波偏移1MHz,单边带 <-125dBc/Hz,nom,<-95dBc/Hz,nom

载波偏移100KHz,单边带 <-95dBc/Hz,nom

基本通用参数

通道及端口

1通道，8RX/TX全双工端口

体积

宽332mm,高58.2mm,深390mm(含把手以及射频头)

重量

约7.5kg
